Waste treatment line is used to manage, reuse and recycle chicken waste.
WASTE TREATMENT

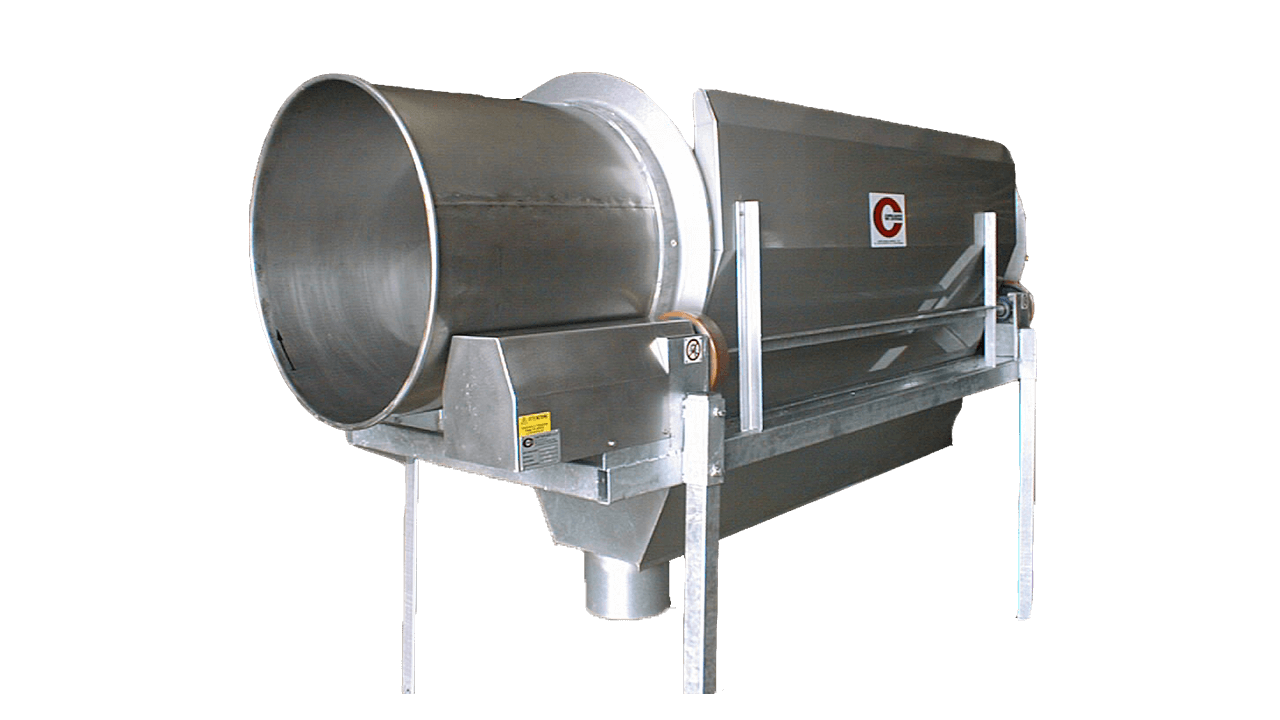

This machine separates the water from the solid products that are pumped here from the slaughtering plant. Thank to an inside screw, the solid is discharged at the exit of the rotating drum while the water is collected into a receiving hopper belaw the perforated drum. The frame and the drum are made of stainless steel.
| Model | 15 | 20 | |
|---|---|---|---|
| Capacity | 100 | 150 | m³ |
| Lenght | 1.250 | 1.250 | mm |
| Width | 2.500 | 3.000 | mm |
| Height | 1.700 | 1.700 | mm |
| Water cons. at 3 bar | 0,7 | 0,9 | m³/h |
| Power installed | 1,1 | 1,5 | kw |
| Total weight | 320 | 340 | kg |
| Shipping volume | 5,3 | 6,3 | M³ |
WASTE TREATMENT

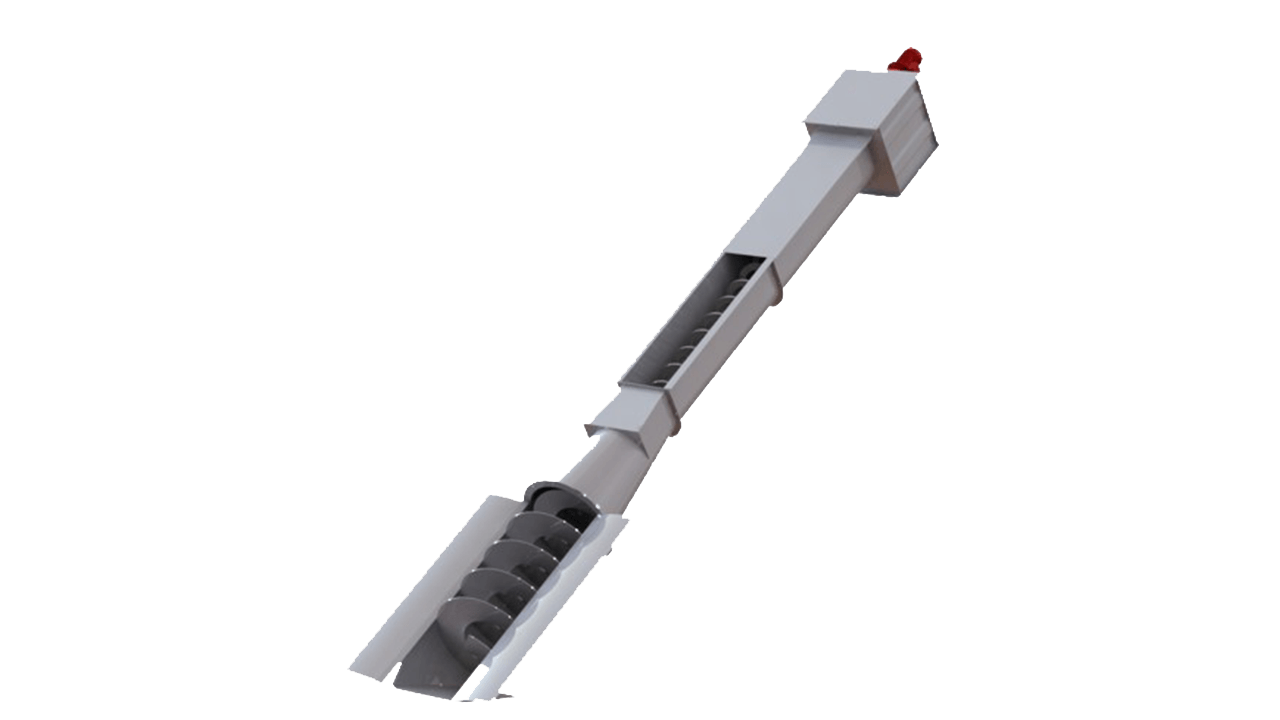

This machine is used to separate from the water and lift into the container the feather and offal coming from the processing plant. At the bottom of the first section of the screw a Jonson filter with 0,5mm clearance separates from the water the feather and the offal. The screw keeps the filter clean thanks to brushes bolted on it. The machine is made of stainless steel.
| Model | RSU 500 | RSU 700 | |
|---|---|---|---|
| Capacity | 140 | 360 | m³ |
| Lenght | 6.300 | 7.700 | mm |
| Width | 700 | 1.100 | mm |
| Height | 1650 | 900 | mm |
| Water cons. at 3 bar | 0,1 | 0,2 | m³/h |
| Power installed | 3 | 4 | kw |
| Total weight | 800 | 1.200 | kg |
| Shipping volume | 4 | 7,6 | M³ |
WASTE TREATMENT

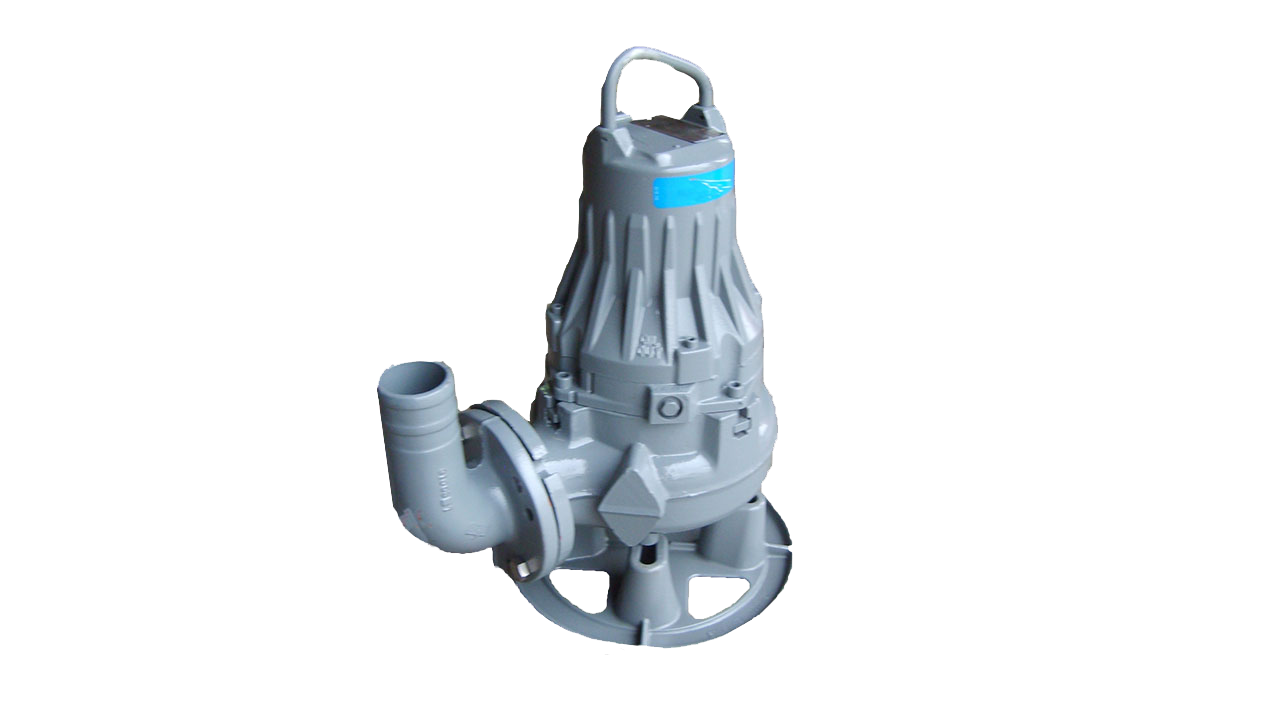

This pump is used to recycle the water coming from the feather separator and so it can be used again to carry all the waste and feathers out of the defeathering area.
| Capacity | 2.400 | l/min |
|---|---|---|
| Lenght | 300 | mm |
| Width | 800 | mm |
| Height | 640 | mm |
| Power installed | 1,3 | kw |
| Total weight | 65 | kg |
| Shipping volume | 0,2 | M³ |
WASTE TREATMENT

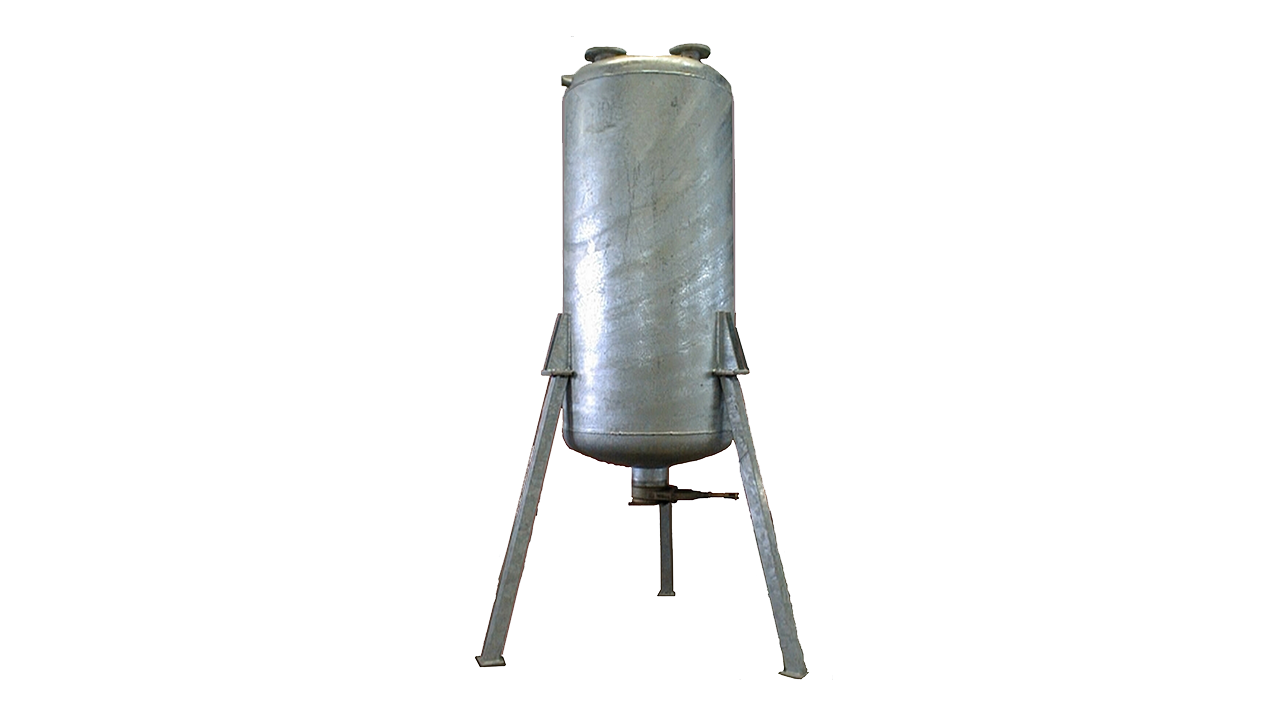

This tank is used to collect every kind of waste sucked by vacuum (blood, lungs, viscera). It is complete with legs and discharging valve. The tank is made of hot dip galvanized steel.
| Capacity | 800 | 1.500 | 2.200 | l |
|---|---|---|---|---|
| Diameter | 800 | 1.000 | 1.200 | Ø |
| Height | 1.800 | 2.320 | 2.320 | mm |
| Total weight | 230 | 400 | 460 | kg |
| Shipping volume | 3 | 5 | 7 | M³ |
WASTE TREATMENT

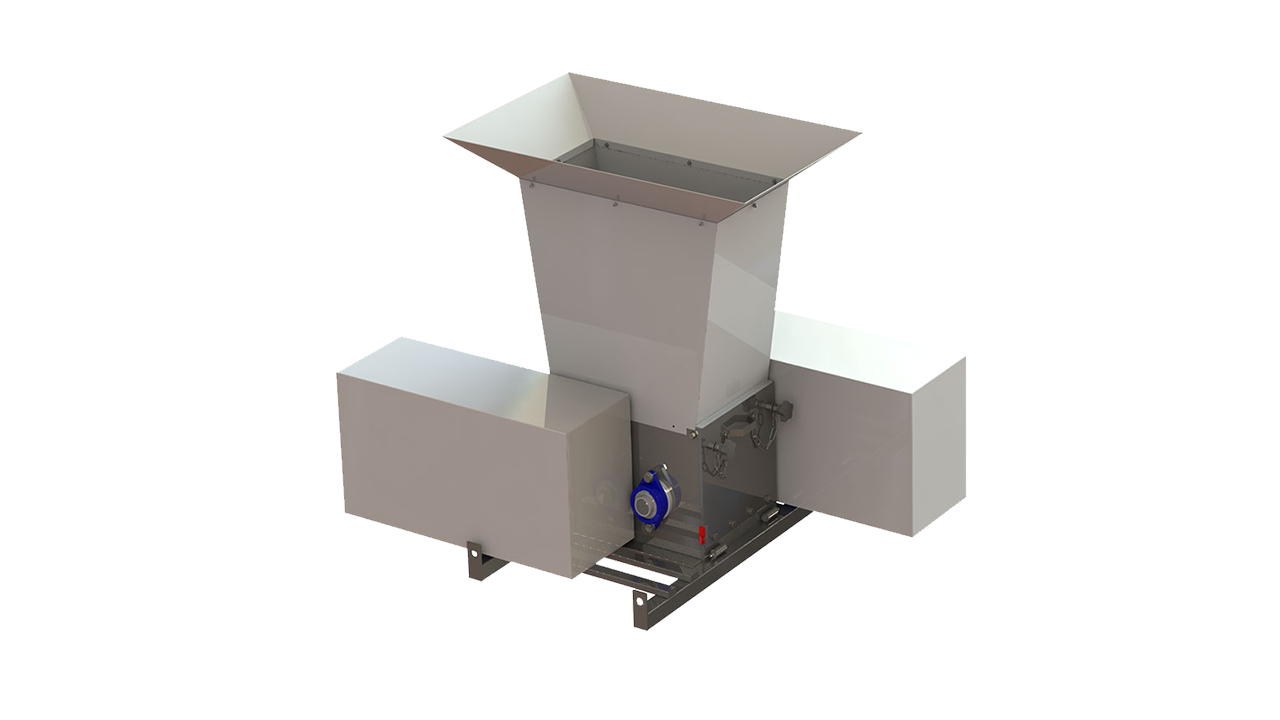

It is used to crush the feet and the carcasses of chickens or turkeys to be evacuated by vacuum. This low-speed crusher is made of stainless steel, with two low-speed counter revolving shafts and counter-wise hooks. It is driven by motor-gearbox.
| Lenght | 1.100 | mm |
|---|---|---|
| Width | 1.000 | mm |
| Height | 1.700 | mm |
| Power installed | 8 (2 motors) | kw |
| Total weight | 330 | kg |
| Shipping volume | 0,8 | M³ |
WASTE TREATMENT

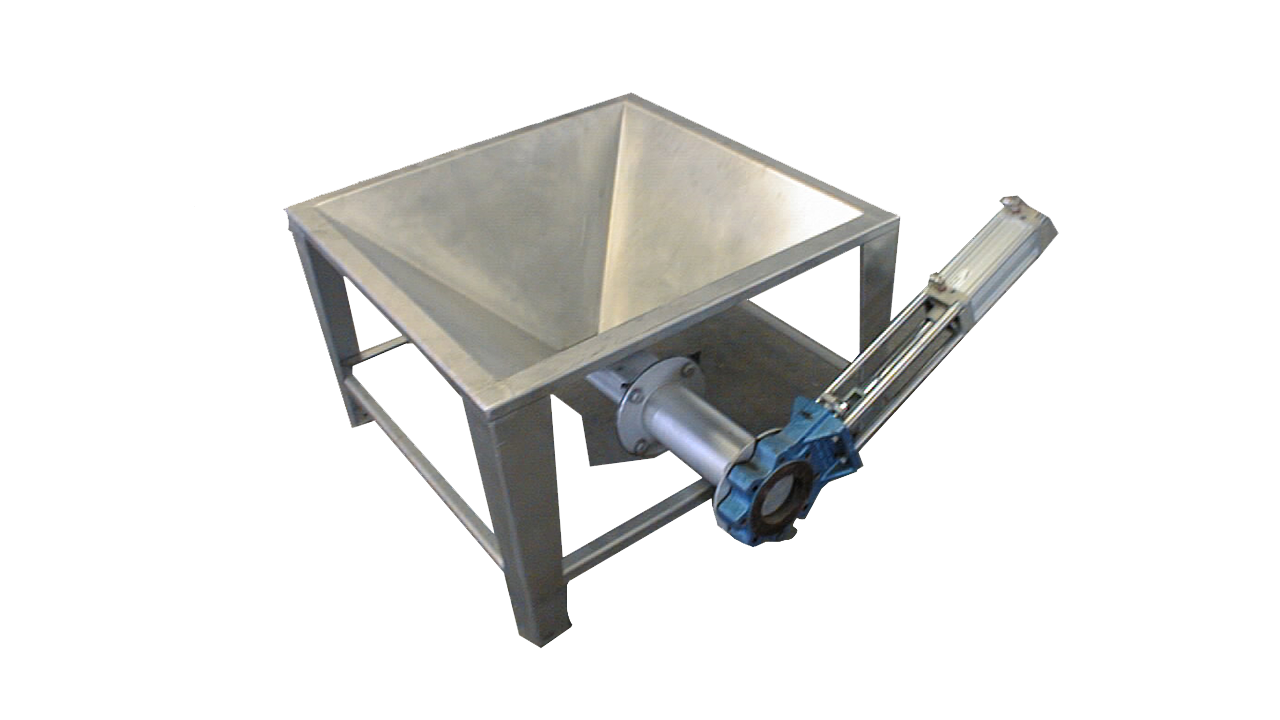

This equipment is used for receive and send by vacuum at regular intervals the offal from the various processing (head, legs, viscera, etc.). Upon the hopper there is a guillotine valve operated from a pneumatic cylinder tire that is opened at regular time. The cycle is setting and regulating up on a special electronic panel. The hopper is made in stainless steel.
| Lenght | 900 | mm |
|---|---|---|
| Width | 900 | mm |
| Height | 550 | mm |
| Air consumption 6bar | 0,36 | m³/h |
| Total weight | 30 | kg |
| Shipping volume | 0,4 | M³ |
WASTE TREATMENT

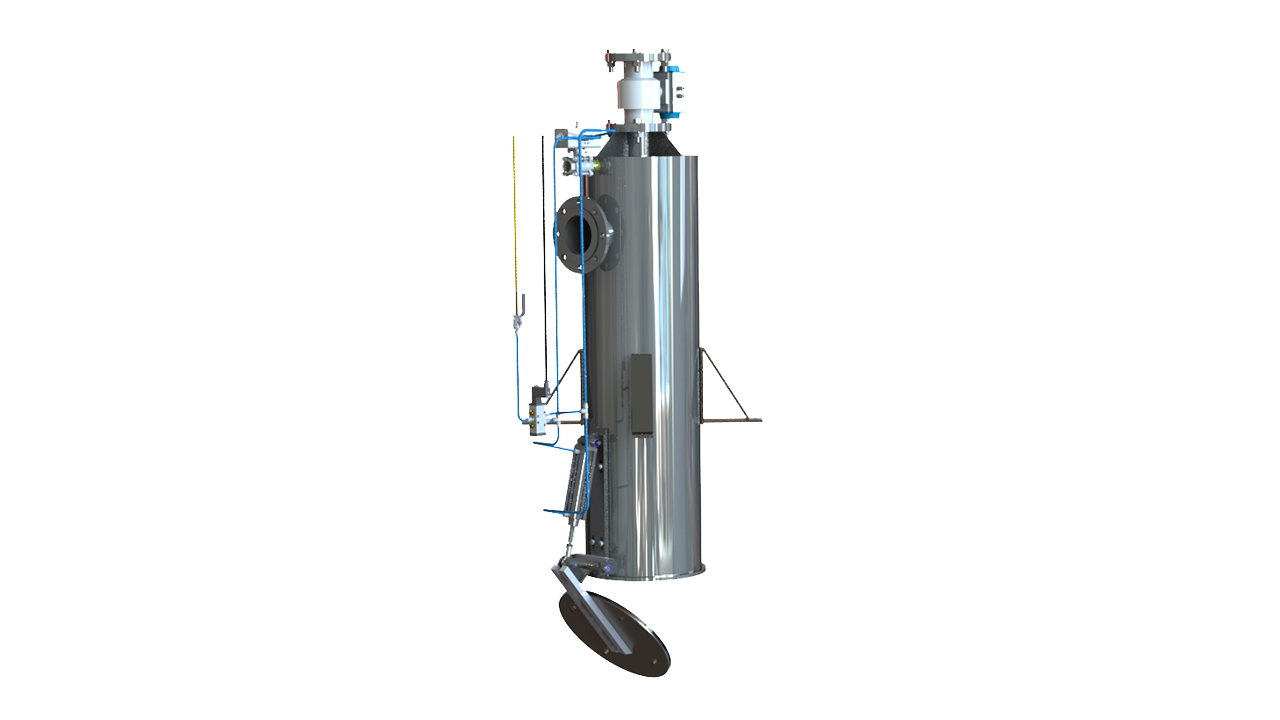

This cyclone is used to receive and discharge at regular times the offal coming from the various hoppers. The operating is regulated from an electrical control panel. The cyclone is made of stainless steel.
| Capacity | 120 | l |
|---|---|---|
| Lenght | 480 | mm |
| Width | 480 | mm |
| Height | 1.250 | mm |
| Total weight | 55 | kg |
| Shipping volume | 0,5 | M³ |
WASTE TREATMENT

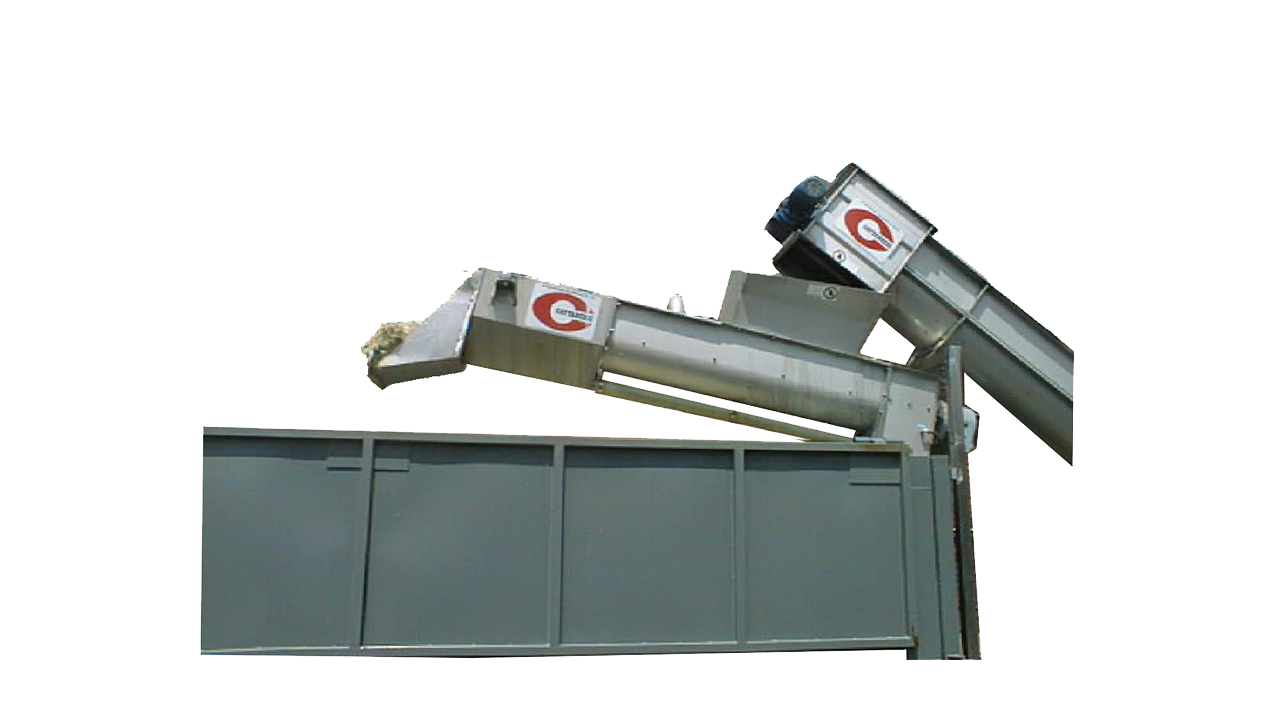

This machine is used to reduce the content of the water into the feather after the feather separator.
The compactor has inside a shaft-less screw and is equipped with a loading section with inlet hopper, and a draining zone with johnson filter 0.5 mm where most part of the water is removed and a second zone equipped with a compacting and unloading unit.
| Model | 400 RPS | |
|---|---|---|
| Capacity | 4 | m³/h |
| Lenght | 3.010 | mm |
| Width | 431 | mm |
| Power installed | 5,5 | kw |
WASTE TREATMENT

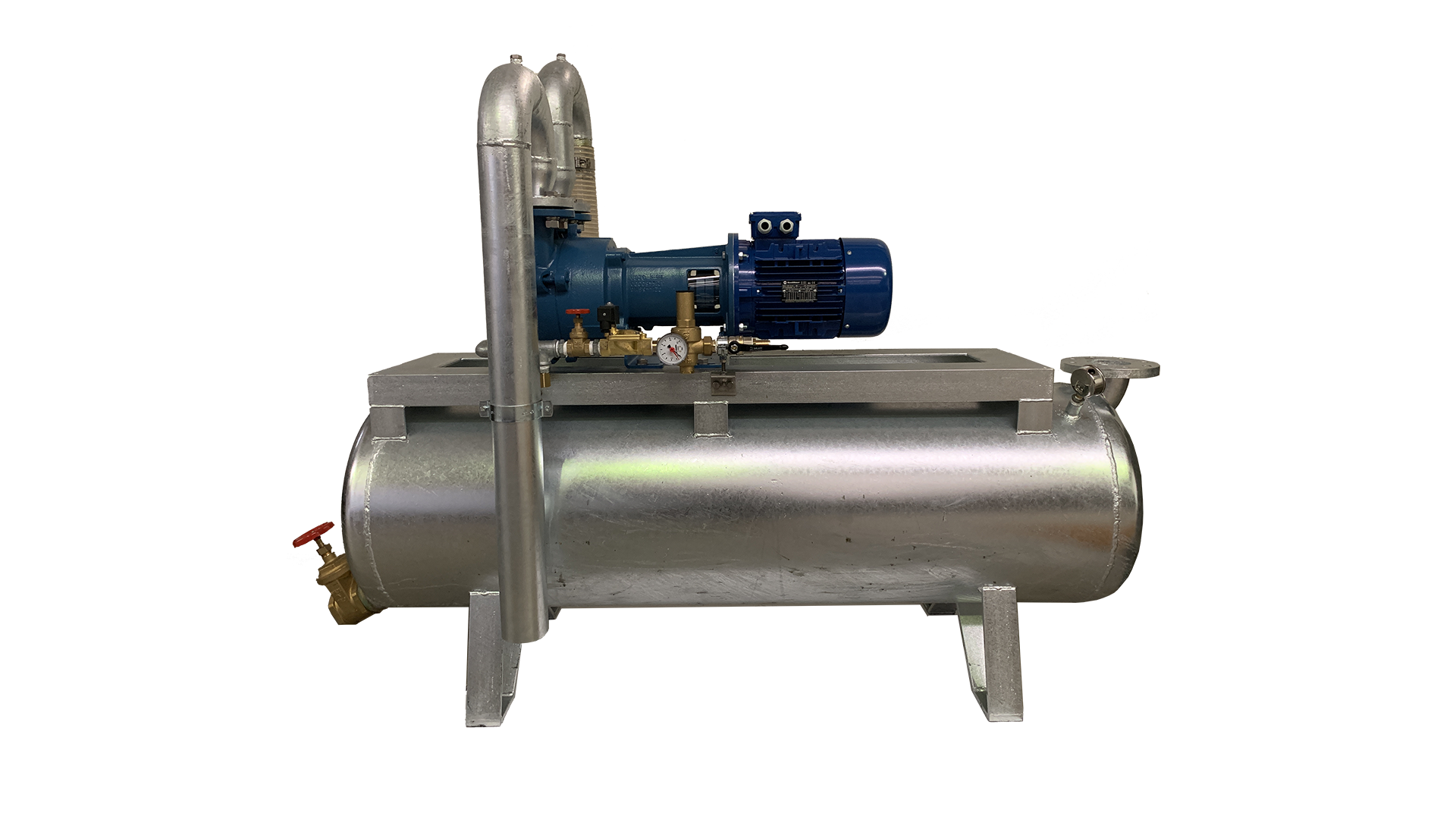

These vacuum pumps, a vane type impeller, are used to produce the vacuum needed into the plant. The rotor is supported by grease lubricated ball bearings.The pump is assembled on a “safety tank” to prevent that solid parts enter into the pump. The casing in cast iron, impellers in bronze and shafts in stainless steel.
| Model | 14 | 17 | 21 | l |
|---|---|---|---|---|
| Vacuum capacity | 120 | 215 | 350 | m³/h |
| Water cons. at 3 bar | 0,8 | 1,1 | 1,1 | m³/h |
| Power installed | 4 | 7,5 | 11 | kw |
| Total weight | 97 | 132 | 210 | kg |
| Shipping volume | 0,07 | 0,13 | 0,20 | M³ |
| Model | 23 | 25 | l |
|---|---|---|---|
| Vacuum capacity | 535 | 810 | m³/h |
| Water cons. at 3 bar | 1,9 | 2,5 | m³/h |
| Power installed | 15 | 22 | kw |
| Total weight | 330 | 445 | kg |
| Shipping volume | 0,22 | 0,40 | M³ |
PRODUCTS
In all areas of the plant we use the most modern technologies available. A dedicated team follows the project from the layout, to the production phase, up to assembly and testing.
