On this line are installed all the equipments used to stun, scald, defeather the poultry; also leg cutter, leg unloader and shackle washer are fitted on the line.
DEFEATHERING

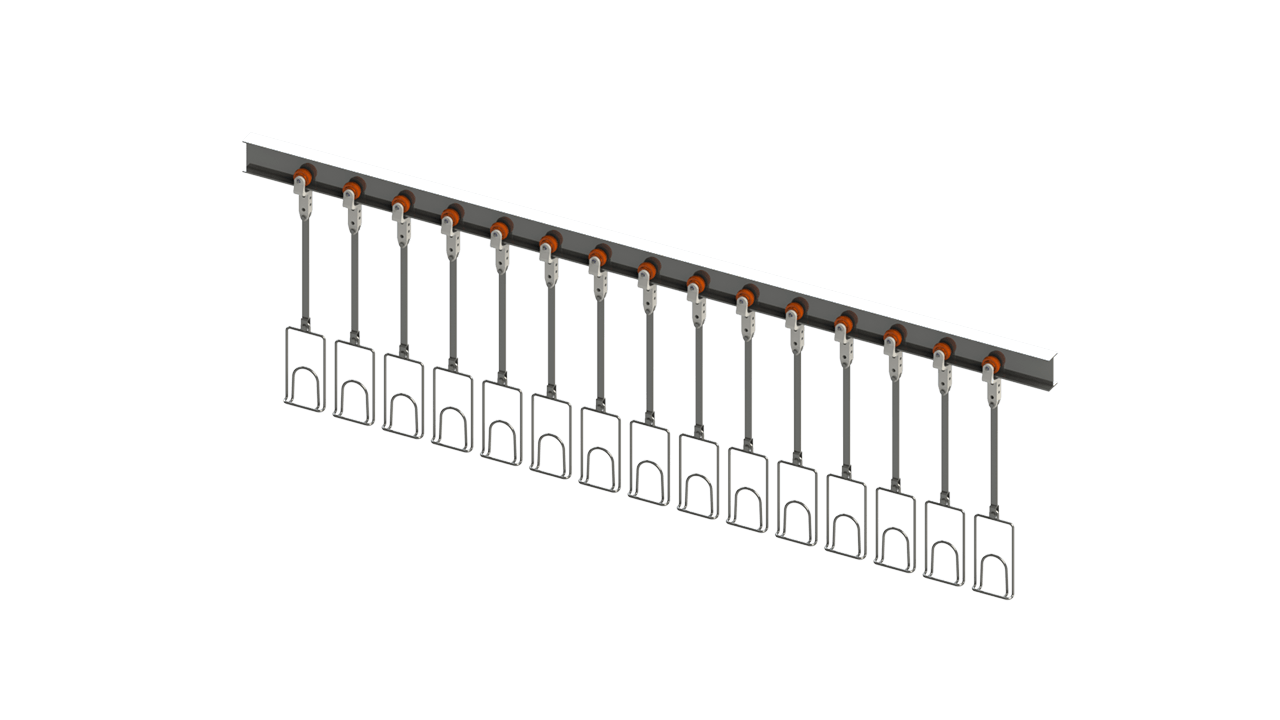

This type of overhead conveyor is designed for the poultry processing plants. The standard track is made of 50×50 T hot dip galvanised rail. or upon request in st.t.st. The trolleys are made of nylon The wheels are made of kemetal with stainless steel balls. The chain is tempered, hardened and galvanised. The shackles are made of stainless steel.
DEFEATHERING
Simplified electrical panel with touch screen panel to adjust frequency (Hz) and voltage (V). This panel does not comply with the new CE regulation, unlike the Inibhit Wave CE2019 panel created specifically to satisfy this regulation.
| Main switch | ON / OFF | |
|---|---|---|
| Electronic frequency | 50 ÷ 1.000 | Hz |
| Transformer | 0 -200 | V |
| Box dimension | 530x430x200 | mm |
| Power | 2 Phases 380 | V |
DEFEATHERING

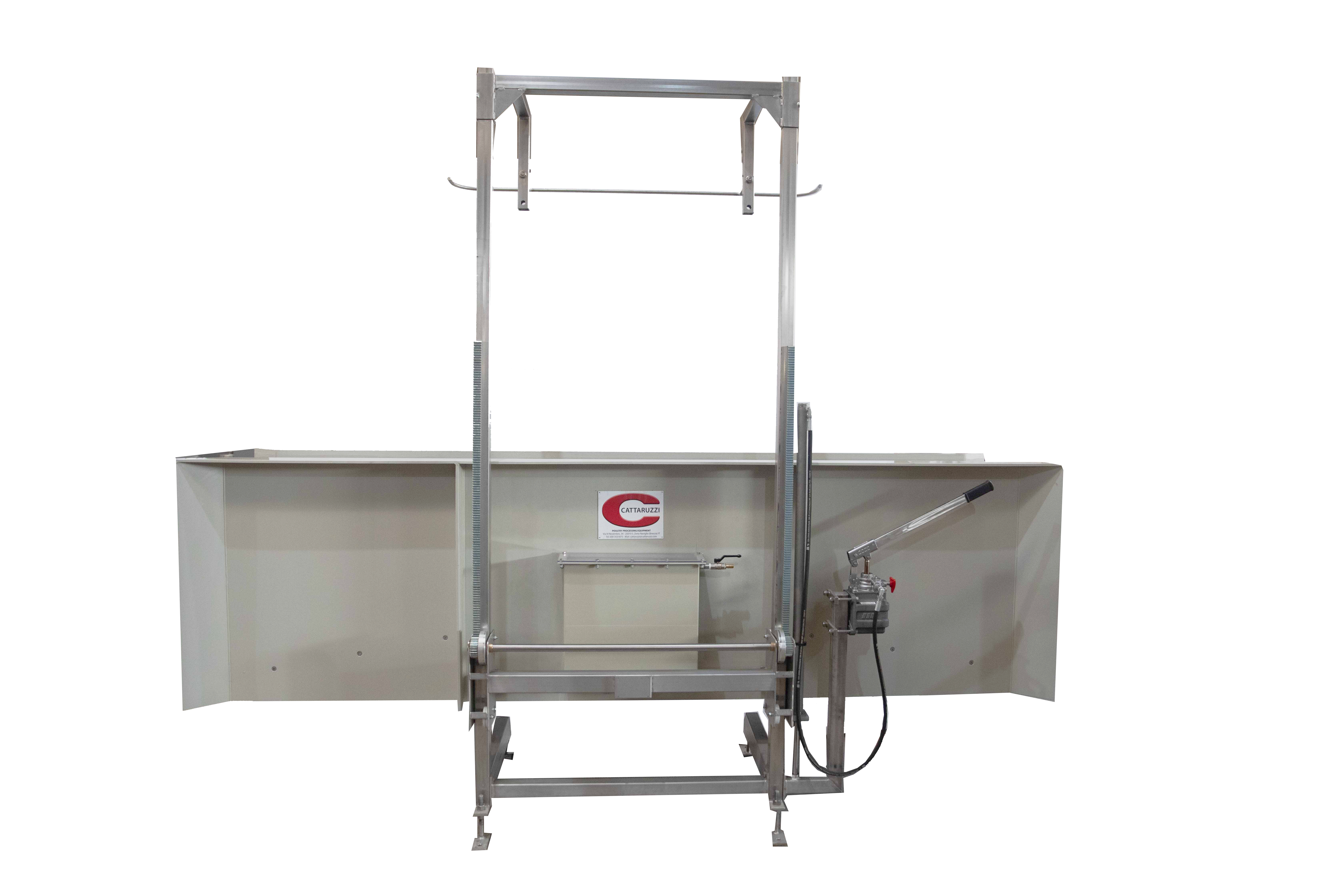

This type of machine is designed for the poultry processing plants to provide a safe method of stunning for any kind of bird. The frame is made of stainless steel and the cabin in fibreglass. The unit is height adjustable on for any kind of bird.
| Model | 4.000 | 8.000 | |
|---|---|---|---|
| Bath lenght | 850 | 1.700 | mm |
| Water connection | 3/8″ | 3/8″ | Ø |
| Total weight | 130 | 130 | kg |
| Shipping volume | 1,7 | 1,7 | M³ |
DEFEATHERING
Cattaruzzi Inhibit Wave is the new control pannel that respect all CE regulations. Technical specifications regarding control pannel:
DEFEATHERING

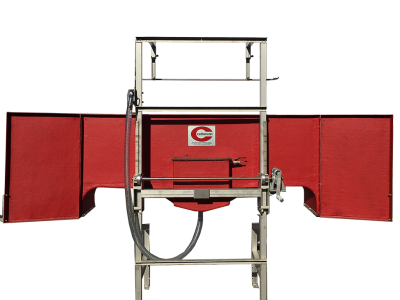

This equipment is used to stun each type of bird by electric shock and has recently been updated to comply with the C.E. which will come into force in 2019. The new load-bearing structure is entirely made of stainless steel and the tank, which can be excluded to have access to the birds in case of failure on the line, is made of polypropylene. The stunner also has the possibility of being adjusted in height to adapt to the various pieces by means of an hydraulic cylinder.
DEFEATHERING

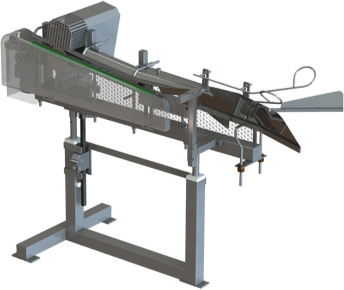

The automatic killer has been designed to perform perfect killing and bleeding of poultry.
The cut is made by a circular blade on one side of the neck, close to the head. The frame and the guide bars are made of stainless steel.
| Capacity | 12.000 | B/h |
|---|---|---|
| Lenght | 2.300 | mm |
| Width | 700 | mm |
| Height | 1.400 | mm |
| Power installed | 0,75 | kw |
| Total weight | 255 | kg |
| Shipping volume | 1 | M³ |
DEFEATHERING
The automatic killer has been designed to perform perfect killing and bleeding of poultry. The cut is made by two circular blades on both sides of the neck, close to the head. The frame and the guide bars are made of stainless steel.
| Capacity | 12.000 | B/h |
|---|---|---|
| Lenght | 1.700 | mm |
| Width | 700 | mm |
| Height | 1.400 | mm |
| Power installer | 1,75 | kw |
| Total weight | 180 | kg |
| Shipping volume | 1 | M³ |
DEFEATHERING

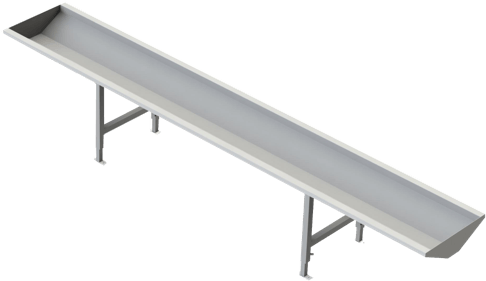

This trough is used to collect the blood from the bleeding of the birds. The trough is made of stainless steel sheet. By joining several sessions, any plant capacity can be covered.
| Model | SR | DR | |
|---|---|---|---|
| Lenght | 2.000 | 2.000 | mm |
| Width | 600 | 800 | mm |
| Height | 800 | 800 | mm |
| Total weight | 20 | 35 | kg |
| Shipping volume | 0,25 | 0,4 | M³ |
DEFEATHERING

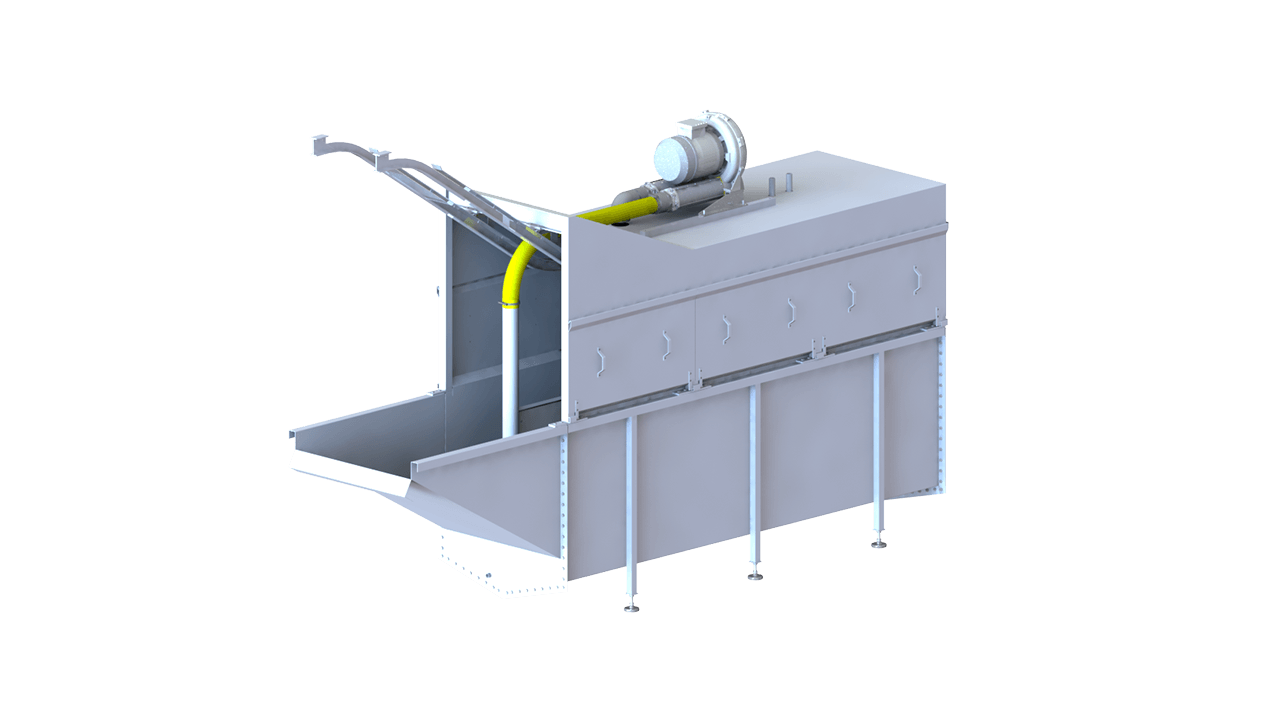

The air jet scalder is designed to obtain an efficient scalding of any type of bird before the defeathering and it is available from two to six passes. Each section is complete with air blowing system and heat exchanger operating with steam or hot water. The machine is built in stainless steel sheet and completed with canopy and side doors for cleaning.
| Model | SRA1 | SRA2 | SRA3 | |
|---|---|---|---|---|
| Lenght | 1.900 | 3.800 | 5.700 | mm |
| Width | 600 | 600 | 600 | mm |
| Chicken bath lenght | 2,80 | 6,60 | 10,40 | m |
| Boiler capacity | 60 | 120 | 180 | kw/h |
| Air blowers | 1 | 1 | 2 | N |
| Blowing power | 2,2 | 4 | 4 | kw |
| Total power | 2,2 | 4 | 8 | kw |
| Net weight | 650 | 945 | 1.240 | kg |
| Shipping volume | 5,5 | 6,6 | 10 | m³ |
| Model | SRA4 | SRA5 | SRA6 | |
|---|---|---|---|---|
| Lenght | 7.600 | 9.500 | 11.400 | mm |
| Width | 600 | 600 | 600 | mm |
| Chicken bath lenght | 14 | 18 | 21,80 | m |
| Boiler capacity | 240 | 300 | 360 | kw/h |
| Air blowers | 2 | 3 | 3 | N |
| Blowing power | 4 | 4 | 4 | kw |
| Total power | 8 | 12 | 12 | kw |
| Net weight | 1.535 | 1.830 | 2.125 | kg |
| Shipping volume | 13,3 | 16,7 | 20 | m³ |
DEFEATHERING

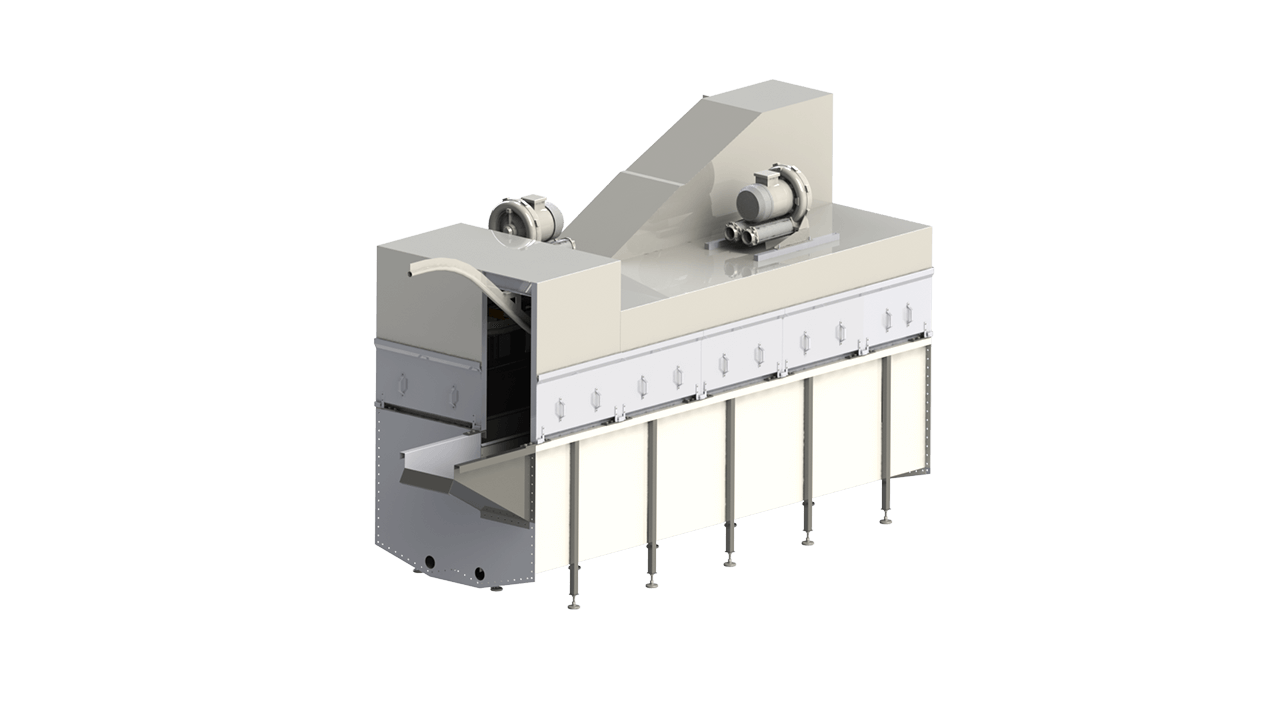

The air jet scalder is designed to obtain an efficient scalding of any type of bird before the defeathering and it is available from two to six passes. Each section is complete with air blowing system and heat exchanger operating with steam or hot water. The machine is built in stainless steel sheet and completed with canopy and side doors for cleaning.
| Model | TWA1 | TWA2 | TWA3 | |
|---|---|---|---|---|
| Lenght | 1.900 | 3.800 | 5.700 | mm |
| Width | 1.500 | 1.500 | 1.500 | mm |
| Chicken bath lenght | 2,80 | 6,60 | 10,40 | m |
| Boiler capacity | 60 | 120 | 180 | kw/h |
| Air blowers | 1 | 1 | 2 | N |
| Blowing power | 2,2 | 4 | 4 | kw |
| Total power | 2,2 | 4 | 8 | kw |
| Net weight | 750 | 1.045 | 1.340 | kg |
| Shipping volume | 4,8 | 9,6 | 14,4 | m³ |
| Model | TWA4 | TWA5 | TWA6 | |
|---|---|---|---|---|
| Lenght | 7.600 | 9.500 | 11.400 | mm |
| Width | 1.150 | 1.150 | 1.150 | mm |
| Chicken bath lenght | 14 | 18 | 21,80 | m |
| Boiler capacity | 240 | 300 | 360 | kw/h |
| Air blowers | 2 | 3 | 3 | N |
| Blowing power | 4 | 4 | 4 | kw |
| Total power | 8 | 12 | 12 | kw |
| Net weight | 1.635 | 1.930 | 2.225 | kg |
| Shipping volume | 19 | 24 | 28,8 | m³ |
DEFEATHERING

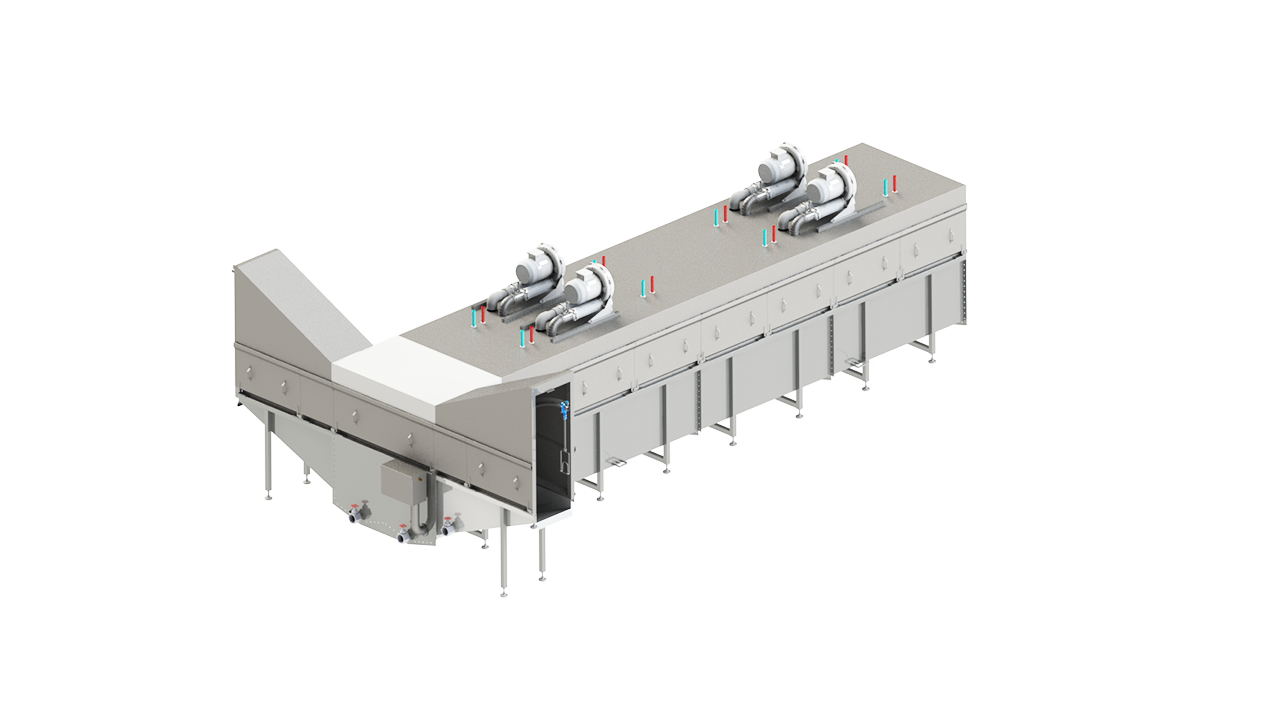

The air jet scalder is designed to obtain an efficient scalding of any type of bird before the defeathering and it is available from two to six passes. Each section is complete with air blowing system and heat exchanger operating with steam or hot water. The machine is built in stainless steel sheet and completed with canopy and side doors for cleaning.
| Model | DRA1 | DRA2 | DRA3 | |
|---|---|---|---|---|
| Lenght | 1.900 | 3.800 | 5.700 | mm |
| Width | 1.500 | 1.500 | 1.500 | mm |
| Chicken bath lenght | 6,20 | 13,80 | 21,40 | m |
| Boiler capacity | 110 | 220 | 330 | kw/h |
| Air blowers | 1 | 2 | 3 | N |
| Blowing power | 2,2 | 4 | 4 | kw |
| Total power | 4 | 8 | 12 | kw |
| Net weight | 1.100 | 1.395 | 1.690 | kg |
| Shipping volume | 7 | 14,3 | 21,4 | m³ |
| Model | DRA 4 | DRA 5 | DRA 6 | |
|---|---|---|---|---|
| Lenght | 7.600 | 9.500 | 11.400 | mm |
| Width | 1.150 | 1.150 | 1.150 | mm |
| Chicken bath lenght | 29 | 36,60 | 44,20 | m |
| Boiler capacity | 440 | 550 | 660 | kw/h |
| Air blowers | 4 | 5 | 6 | N |
| Blowing power | 4 | 4 | 4 | kw |
| Total power | 16 | 20 | 24 | kw |
| Net weight | 1.985 | 2.280 | 2.575 | kg |
| Shipping volume | 28,5 | 35,6 | 42,7 | m³ |
DEFEATHERING

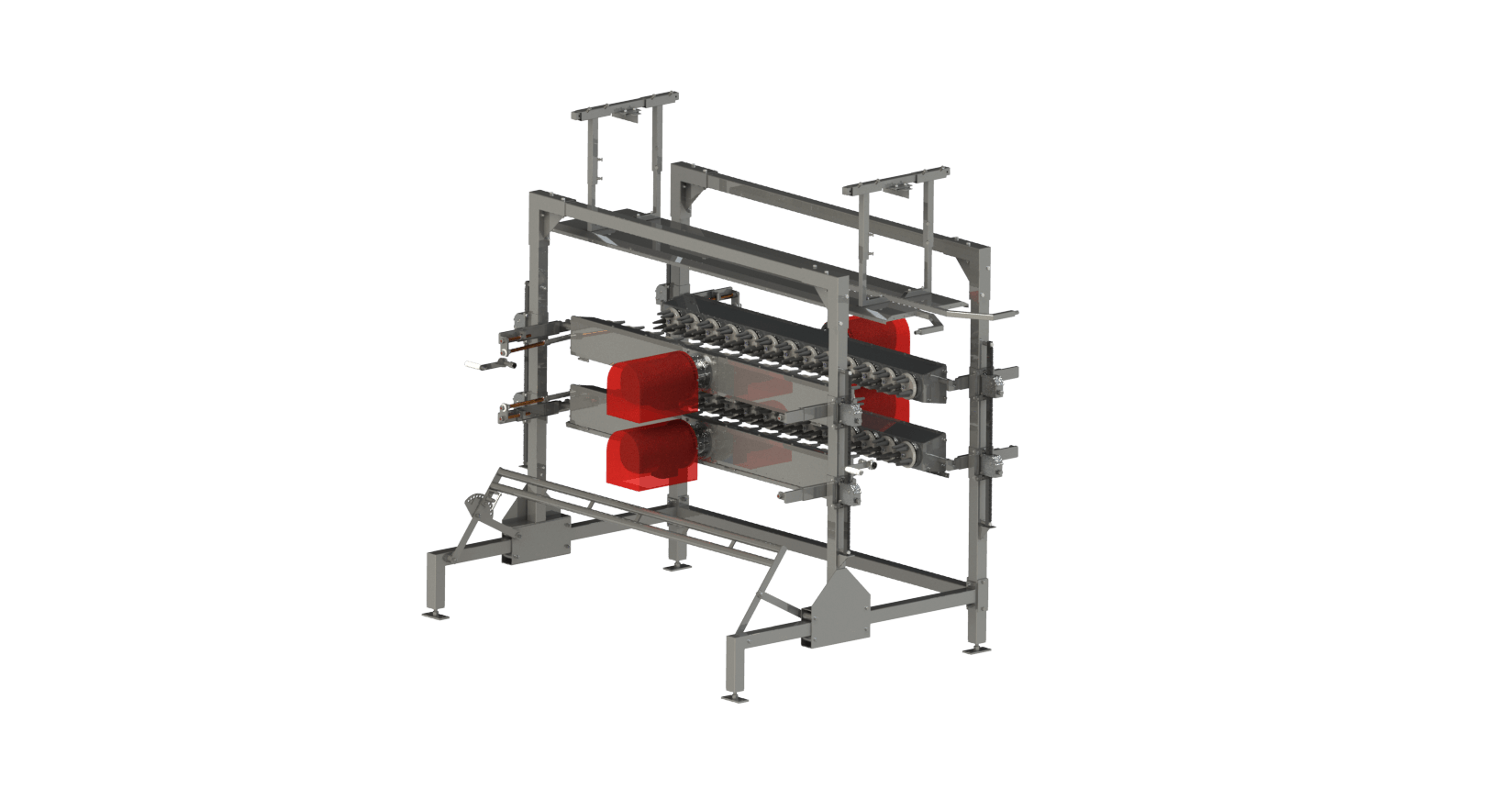

The automatic plucker Discomatic SP is composed of single and independent banks, so it is possible to adjust them according to any size of poultry. the plucker is manufactured in different lenght model according to the speed of the line. The machine is made of stainless steel.
| Model | SP44 | SP52 | SP64 | |
|---|---|---|---|---|
| Lenght | 2.500 | 2.700 | 3.250 | mm |
| Width | 1.800 | 1.800 | 1.800 | mm |
| Disks on each bank | 11 | 13 | 16 | N |
| Water | 800 | 1.000 | 1.200 | l/h (45° C) |
| Total motors | 4 | 4 | 8 | N |
| Total power | 9 | 9 | 12 | kw |
| Net weight | 695 | 720 | 960 | kg |
| Shipping volume | 2,3 | 2,4 | 2,5 | m³ |
| Model | SP72 | SP88 | |
|---|---|---|---|
| Lenght | 3.650 | 4.200 | mm |
| Width | 1.800 | 1.800 | mm |
| Disks on each bank | 18 | 22 | N |
| Water | 1.200 | 1.400 | l/h (45° C) |
| Total motors | 8 | 8 | N |
| Total power | 12 | 18 | kw |
| Net weight | 1.070 | 1.135 | kg |
| Shipping volume | 2,7 | 2,8 | m³ |
DEFEATHERING

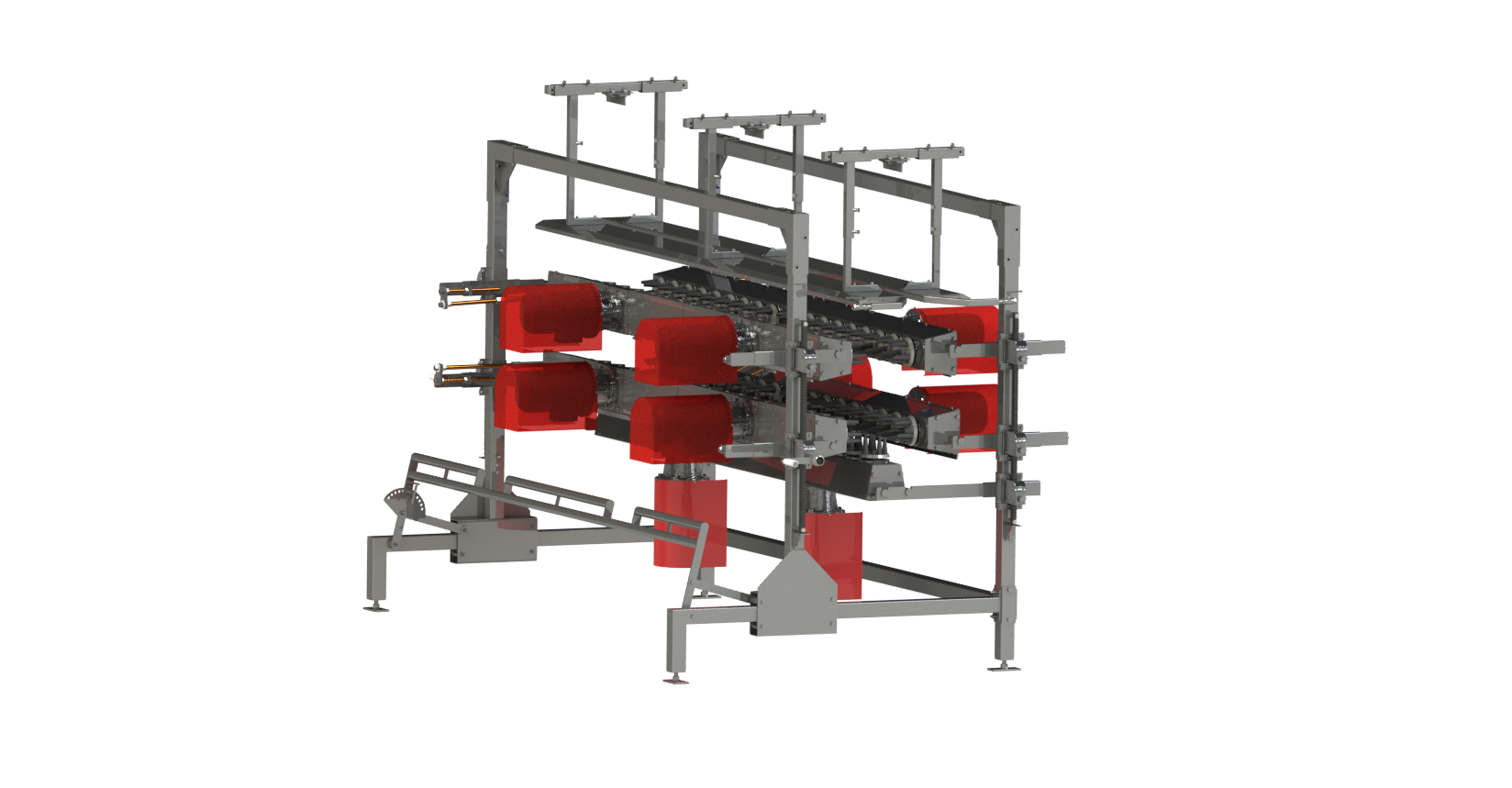

The automatic plucker Discomatic SP is composed of single and independent banks, so it is possible to adjust them according to any size of poultry. the plucker is manufactured in different lenght model according to the speed of the line. The machine is made of stainless steel.
| Model | SP55 | SP65 | SP80 | |
|---|---|---|---|---|
| Lenght | 2.500 | 2.700 | 3.250 | mm |
| Width | 1.800 | 1.800 | 1.800 | mm |
| Disks on each bank | 11 | 13 | 16 | N |
| Water | 800 | 1.000 | 1.200 | l/h (45° C) |
| Total motors | 5 | 5 | 10 | N |
| Total power | 11,25 | 11,25 | 15 | kw |
| Net weight | 800 | 835 | 1.190 | kg |
| Shipping volume | 3,8 | 4 | 4,5 | m³ |
| Model | SP90 | SP110 | |
|---|---|---|---|
| Lenght | 3.650 | 4.200 | mm |
| Width | 1.800 | 1.800 | mm |
| Disks on each bank | 18 | 22 | N |
| Water | 1.200 | 1.400 | l/h (45° C) |
| Total motors | 10 | 10 | N |
| Total power | 15 | 22,5 | kw |
| Net weight | 1.225 | 1.330 | kg |
| Shipping volume | 4,9 | 5,4 | m³ |
DEFEATHERING

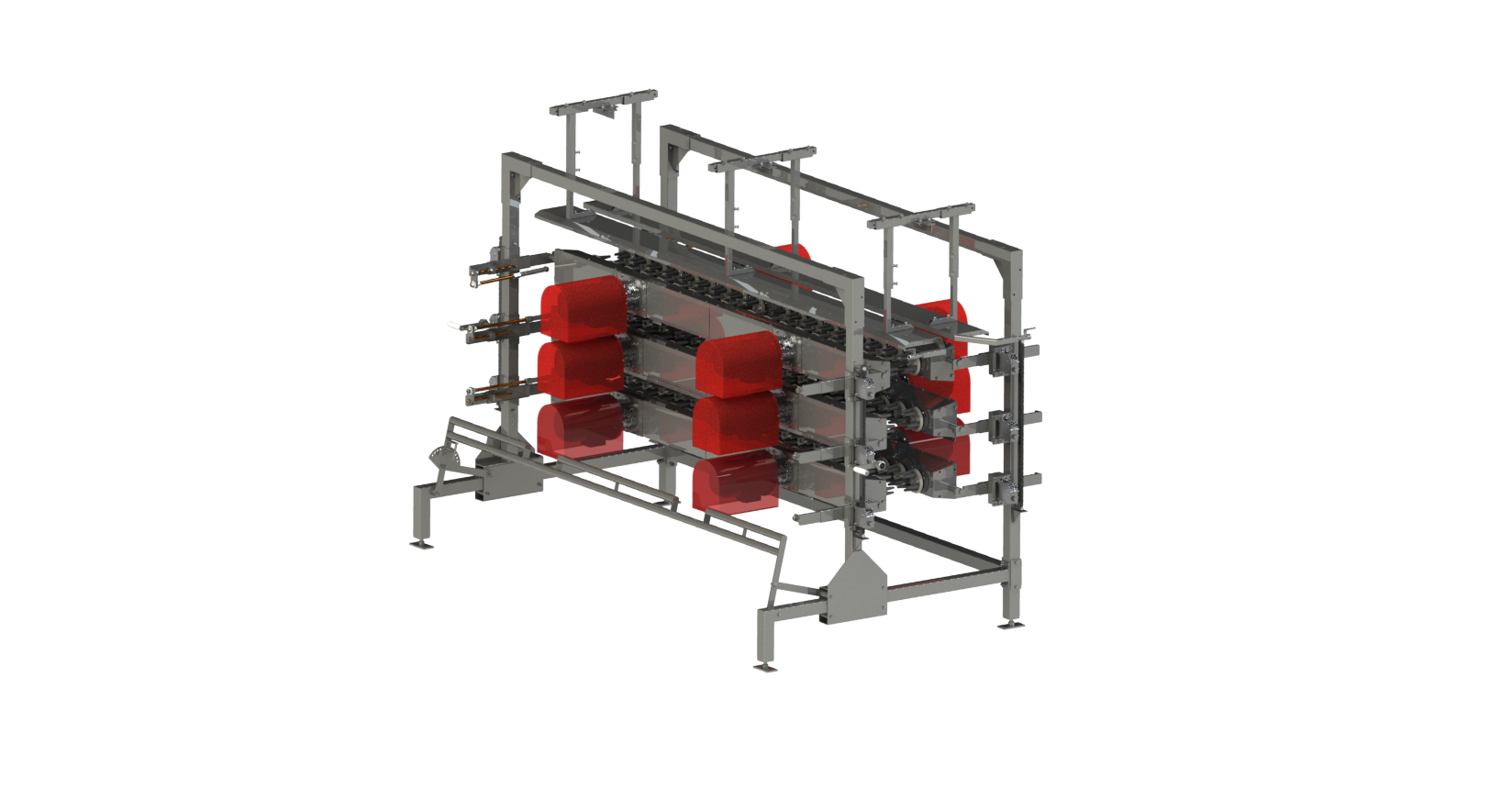

The automatic plucker Discomatic SP is composed of single and independent banks, so it is possible to adjust them according to any size of poultry. the plucker is manufactured in different lenght model according to the speed of the line. The machine is made of stainless steel.
| Model | SP66 | SP78 | SP96 | |
|---|---|---|---|---|
| Lenght | 2.500 | 2.700 | 3.250 | mm |
| Width | 1.800 | 1.800 | 1.800 | mm |
| Disks on each bank | 11 | 13 | 16 | N |
| Water | 800 | 1.000 | 1.200 | l/h (45° C) |
| Total motors | 6 | 6 | 12 | N |
| Total power | 13,5 | 13,5 | 18 | kw |
| Net weight | 1.080 | 1.200 | 1.350 | kg |
| Shipping volume | 4,3 | 4,6 | 5,5 | m³ |
| Model | SP108 | SP132 | |
|---|---|---|---|
| Lenght | 3.650 | 4.200 | mm |
| Width | 1.800 | 1.800 | mm |
| Disks on each bank | 18 | 22 | N |
| Water | 1.200 | 1.400 | l/h (45° C) |
| Total motors | 12 | 12 | N |
| Total power | 18 | 27 | kw |
| Net weight | 1.470 | 1.700 | kg |
| Shipping volume | 5,8 | 6 | m³ |
DEFEATHERING

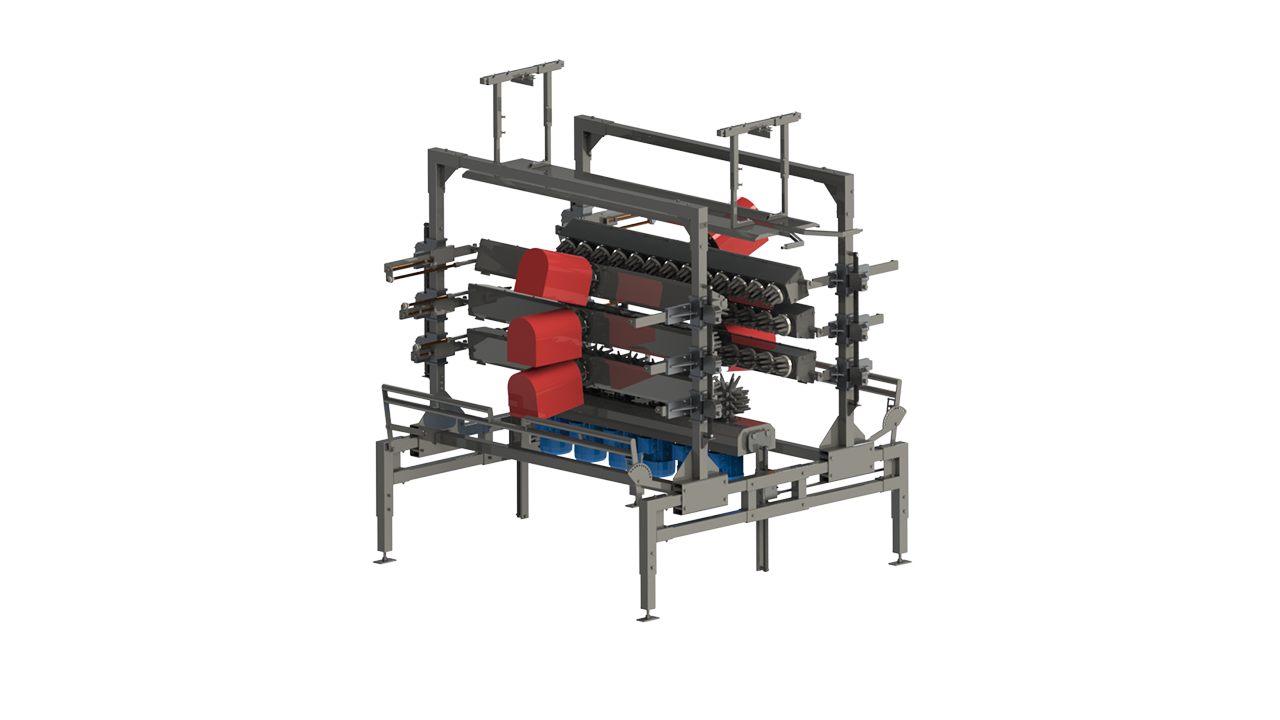

The plucker Discomatic SPT for chicken and turkey is composed by 7 single and independent banks, so it is possible to adjust them according to the size of poultry.On the bottom bank special cones with finger is used to pluck the crop and the wings of the turkey. The machine is made of stainless steel.
| Model | SP77 | SP91 | SP112 | |
|---|---|---|---|---|
| Lenght | 2.500 | 2.700 | 3.250 | mm |
| Width | 2.200 | 2.200 | 2.200 | mm |
| Disks on each bank | 11 | 13 | 16 | N |
| Water | 800 | 1.000 | 1.200 | l/h (45° C) |
| Total motors | 9 | 9 | 16 | N |
| Total power | 20,25 | 20,25 | 27 | kw |
| Net weight | 1.090 | 1.150 | 1.600 | kg |
| Shipping volume | 5,8 | 6,2 | 7,5 | m³ |
| Model | SP126 | SP154 | |
|---|---|---|---|
| Lenght | 3.650 | 4.200 | mm |
| Width | 2.200 | 2.200 | mm |
| Disks on each bank | 18 | 22 | N |
| Water | 1.200 | 1.400 | l/h (45° C) |
| Total motors | 16 | 18 | N |
| Total power | 27 | 40,5 | kw |
| Net weight | 1.670 | 1.880 | kg |
| Shipping volume | 8,3 | 9,6 | m³ |
DEFEATHERING

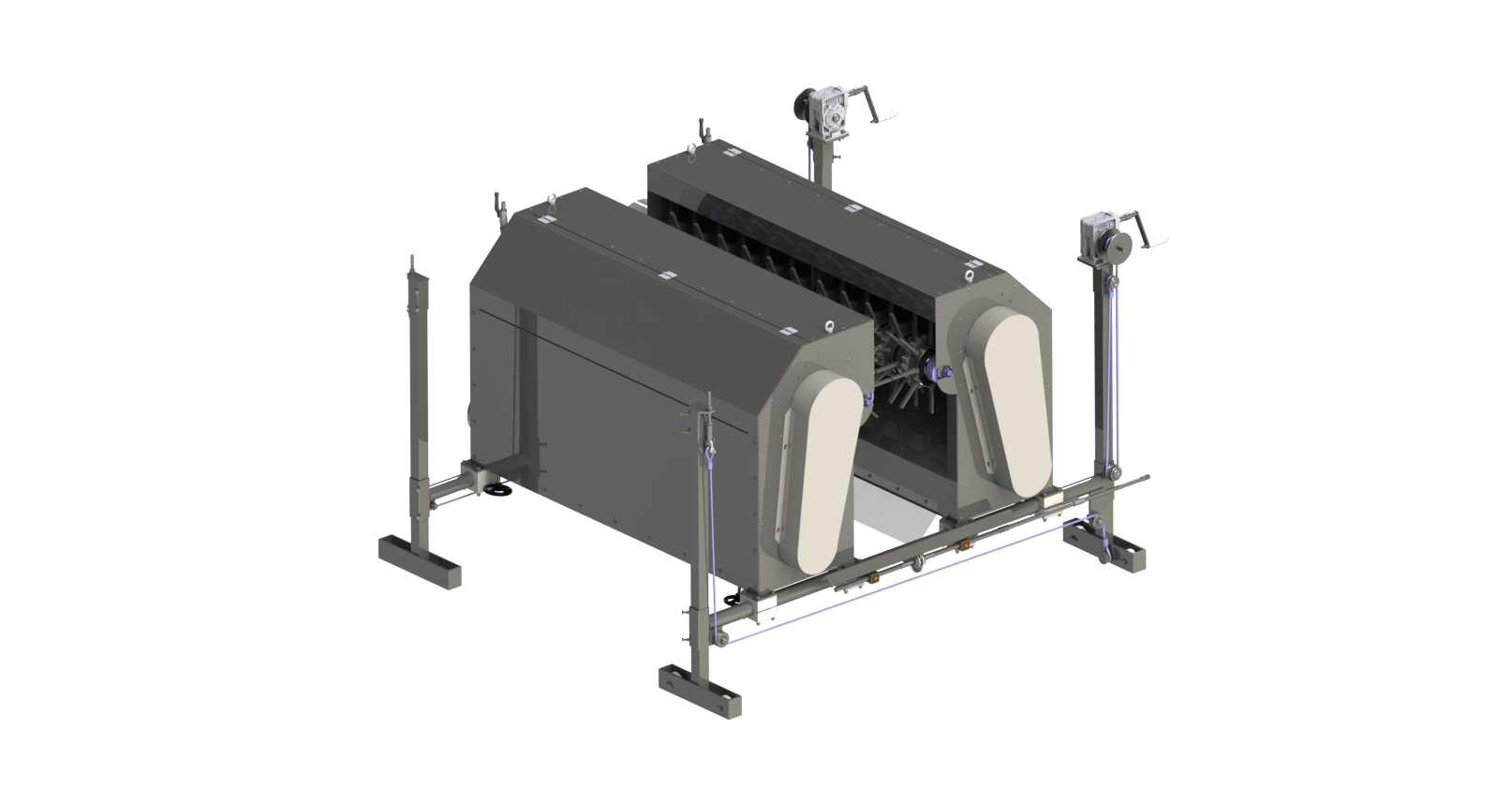

The automatic plucker CR 22 is highly recommended as first plucher on hight speed defeathering line. The machine works thanks to two main shafts equipped with 22 aluminum rollers holding fingers; 12 rollers run downwards, driven by rubber gears, 10 run upwards. The frame and the covers are made of stainless steel.
| Model | Chicken | Turkey | |
|---|---|---|---|
| Lenght | 2.600 | 2.600 | mm |
| Width | 2.850 | 2.850 | mm |
| Height | 1.530 | 1.530 | mm |
| Cold water cons. | 800 | 800 | l/h |
| Hot water cons. | 600 | 600 | l/h |
| Motors | 4 | 4 | n |
| Power installed | 16 | 22 | kw |
| Total weight | 1.620 | 1.700 | kg |
| Shipping volume | 6,5 | 6,5 | M³ |
DEFEATHERING

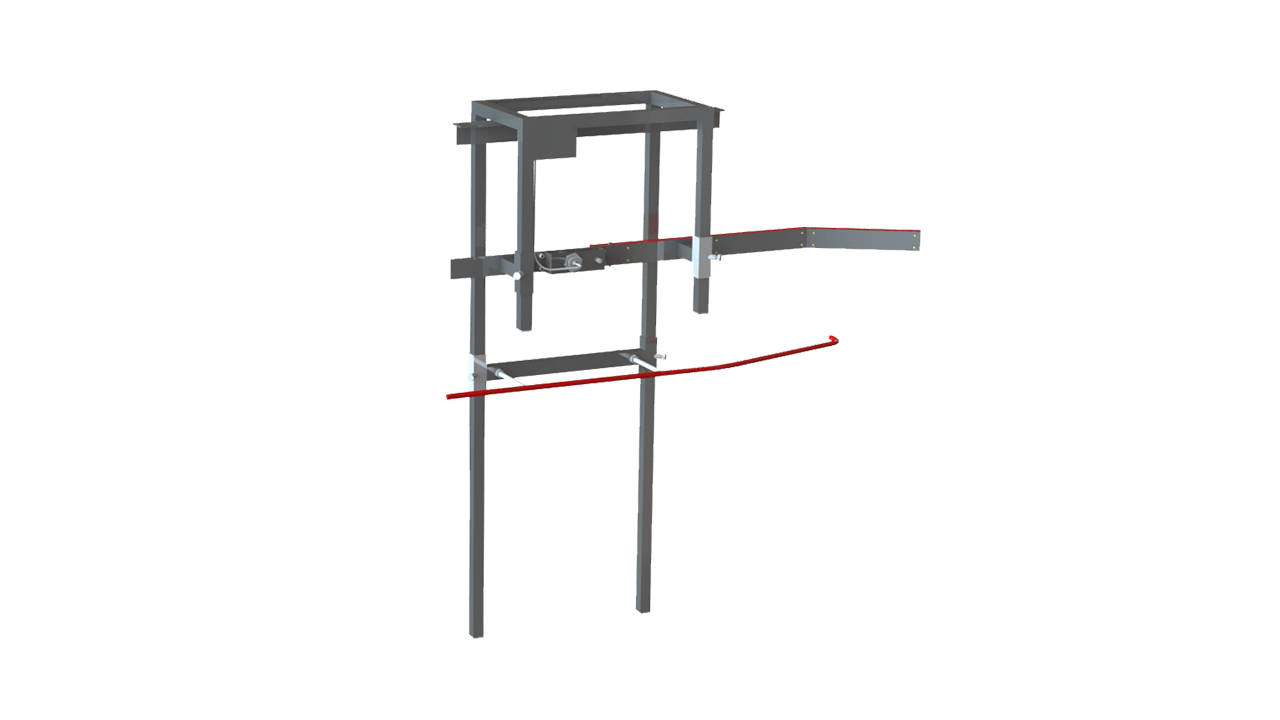

This machine can be installed on any kind of killing or eviscerating line and it is suitable for any capacity up to 8000 b/h, A guide move towards the sensor only the shackle with the bird. The signal is transmitted to an electronic counting unit with e zero reset. The structure and guide-bars are made of stainless steel.
| Lenght | 1.500 | mm |
|---|---|---|
| Width | 550 | mm |
| Height | 800 | mm |
| Power installed | 0,1 | kw |
| Total weight | 30 | kg |
DEFEATHERING

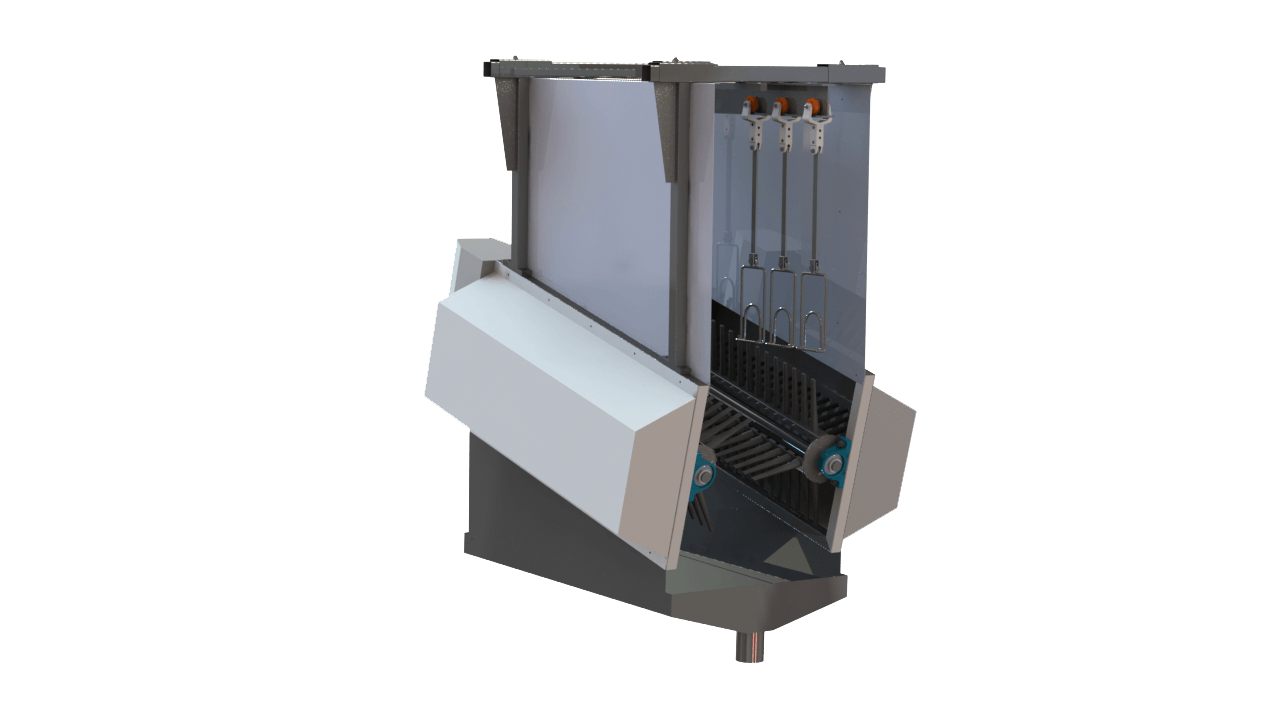

This machine carefully clean and washes the birds outside by the combination action of sprayed water and rubber fingers fixed on rotating drums.The machine is made of stainless steel. The drums holding the fingers are driven by a motorgearbox.
| Capacity | 6.000 | B/h |
|---|---|---|
| Lenght | 2.200 | mm |
| Width | 2.000 | mm |
| Height | 1.800 | mm |
| Water cons. | 400 ÷ 2.000 | l/h |
| Motors | 2 | N |
| Power installed | 3 | kw |
| Total weight | 900 | kg |
| Shipping volume | 3,0 | M³ |
DEFEATHERING

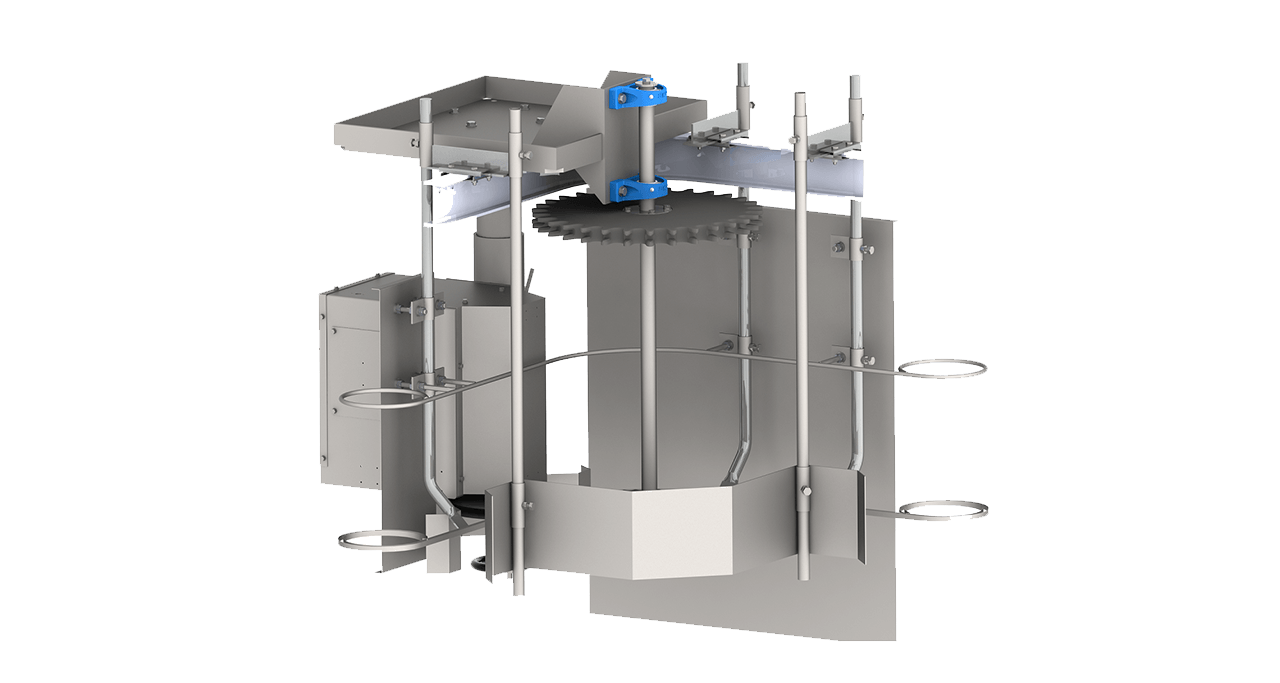

The leg cutter is located at the end of the defeathering line. It is self-synchronized with the conveyor and a toothed wheel ensures the correct position of the feet in front of the blades. The frames and all the covers are made of st. st.
| Capacity | 12.000 | b/h |
|---|---|---|
| Lenght | 1.100 | mm |
| Width | 1.000 | mm |
| Height | 1.200 | mm |
| Power installed | 1.5 – 2,25 | kw |
| Total weight | 190 | kg |
| Shipping volume | 1 | M³ |
DEFEATHERING

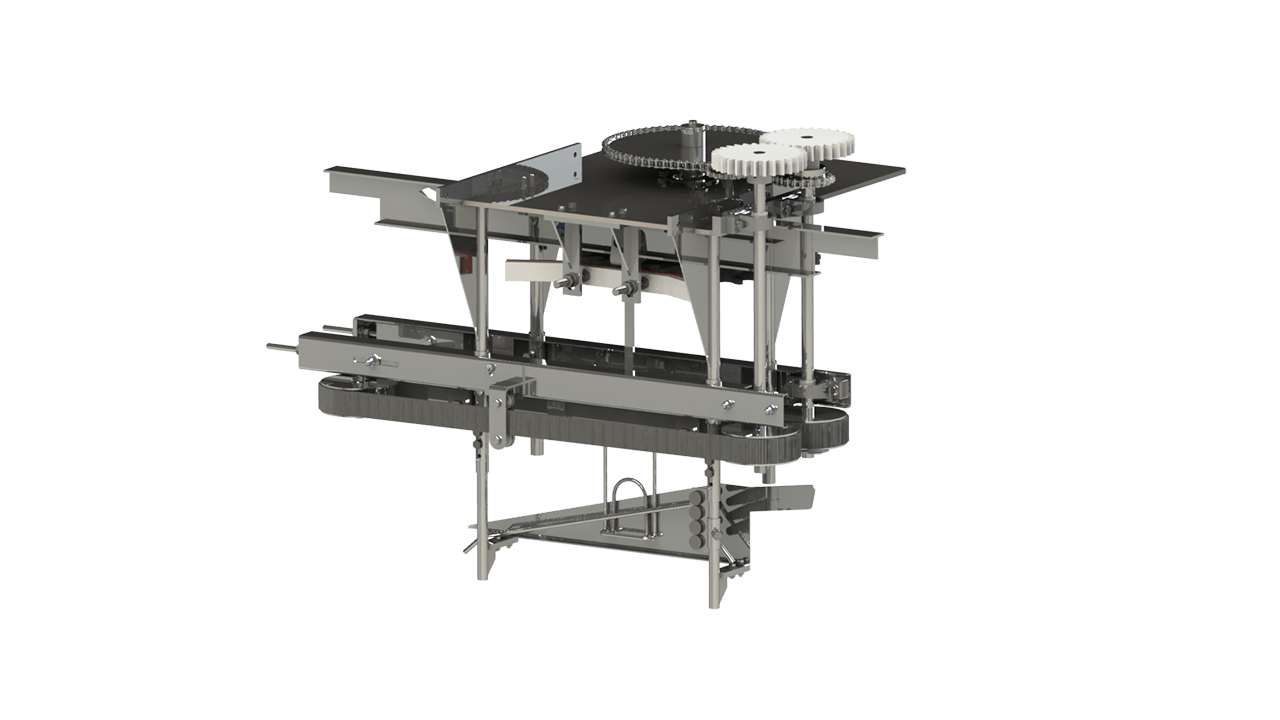

The automatic feed unloader, placed next to our leg remover, removes all the feet from the shackles. The machine and guiding bars are made of stainless steel.
| Capacity | 12.000 | b/h |
|---|---|---|
| Lenght | 1.100 | mm |
| Width | 500 | mm |
| Height | 900 | mm |
| Power installed | 0,75 | kw |
| Total weight | 88 | kg |
| Shipping volume | 0,8 | M³ |
DEFEATHERING
The automatic feed unloader is placed next to the leg cutter and removes from the shackles all the feet of the birds. The frame and guiding bars are in stainless steel.
| Lenght | 1.300 | mm |
|---|---|---|
| Width | 850 | mm |
| Height | 1.200 | mm |
| Total weight | 140 | kg |
| Shipping volume | 1,3 | M³ |
DEFEATHERING

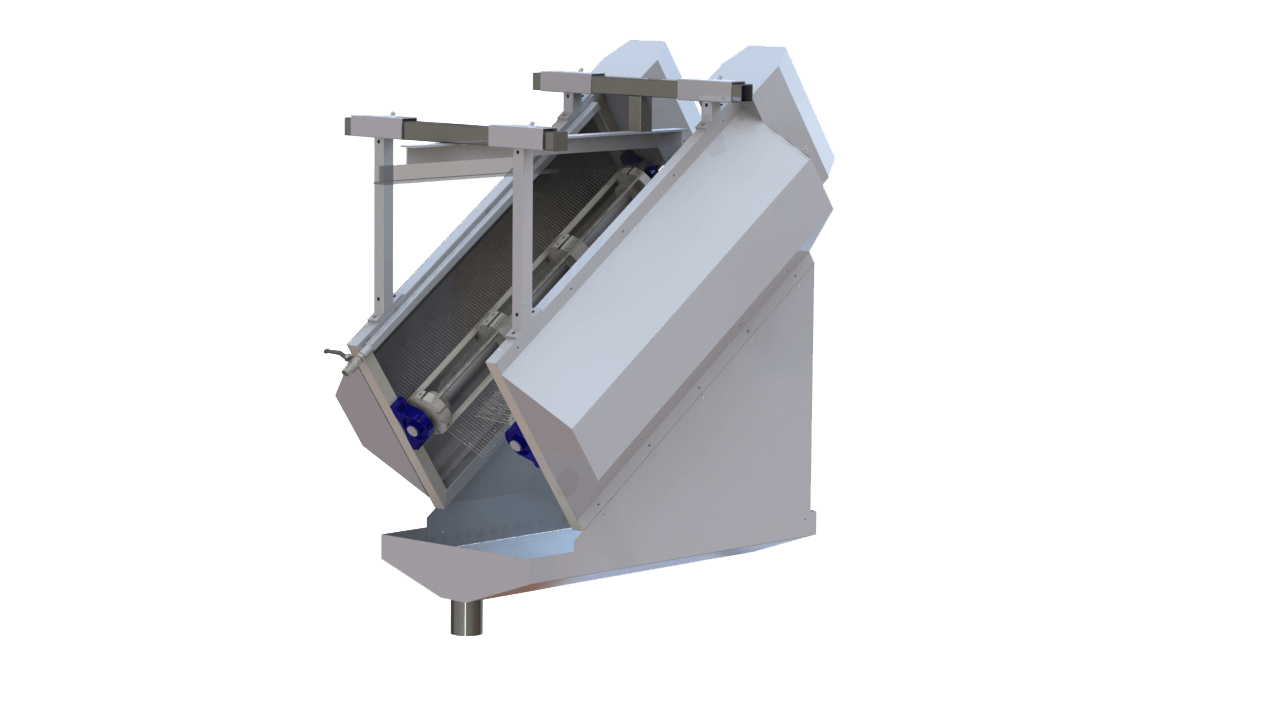

The shackle washer cleans continuously the chain and the shackles of the overhead conveyor. The cleaning is carried out by water and by two rotating nylon brushes. Frame and protections are made of stainless steel.
| Capacity | 8.000 | B/h |
|---|---|---|
| Lenght | 1.050 | mm |
| Width | 1.000 | mm |
| Height | 900 | mm |
| Water cons. | 1,5 | m³/h |
| Power installed | 2 x 0,37 | kw |
| Total weight | 140 | kg |
| Shipping volume | 1 | M³ |
DEFEATHERING

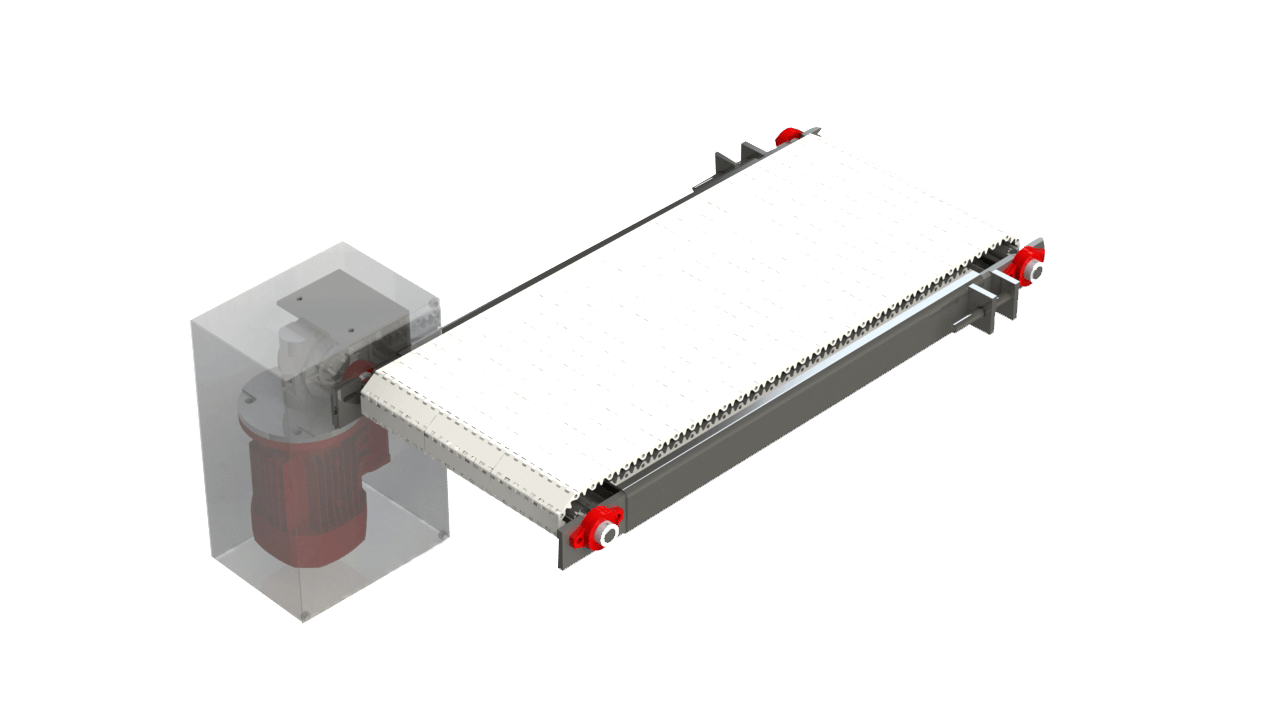

The belt conveyor is used to transfer the product form a working line to another into the processing plant. The frame is made in stainless steel and the belt is in non-toxic plastic.
| Lenght | 2.00 | mm |
|---|---|---|
| Width | 500 | mm |
| Height | 800 | mm |
| Power installed | 0,37 ÷ 1,5 | kw |
| Total weight | 100 | kg |
| Shipping volume | 0,5 | M³ |
